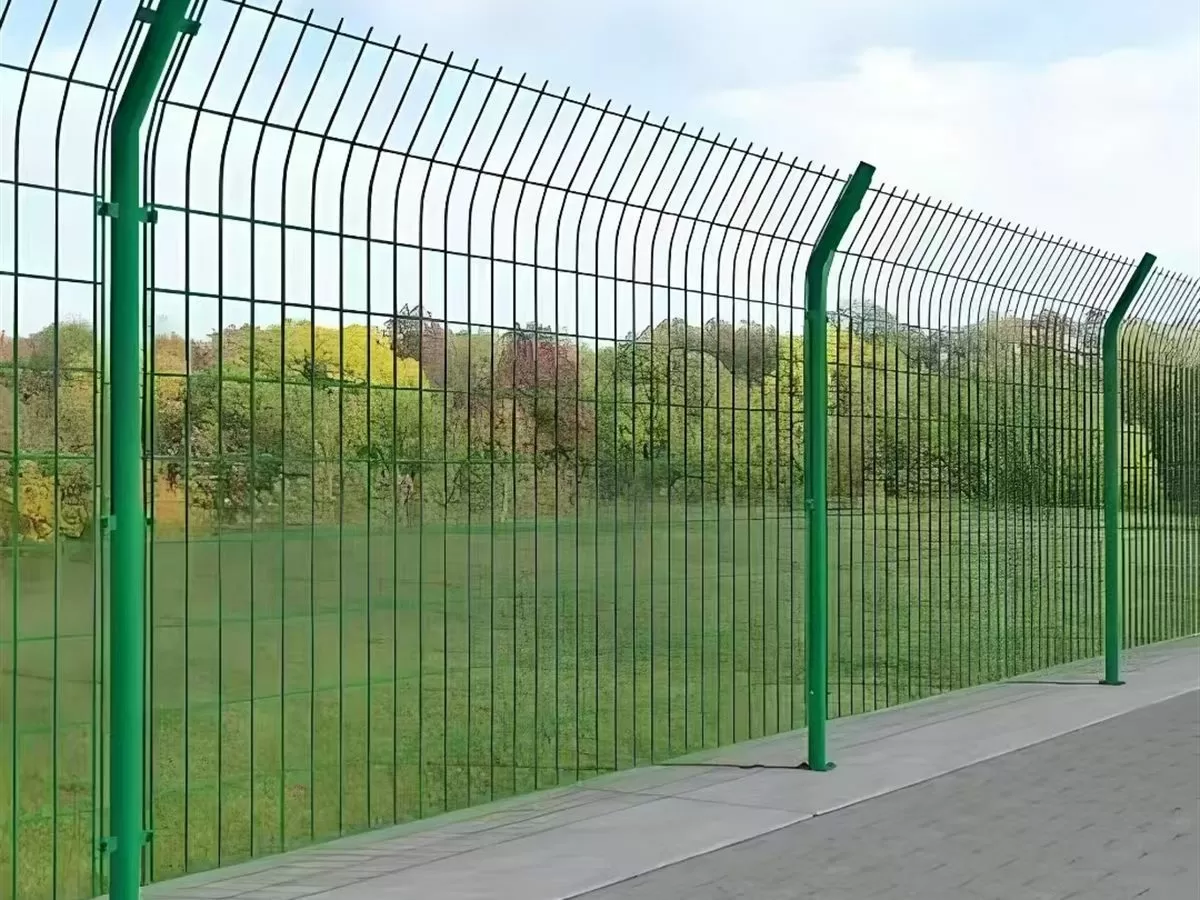

Double-Wire Mesh Fence
Double horizontal wires with a single vertical wire, welded into a rigid panel on round or square posts, in hot-dip galvanised, galvanised-and-powder-coated or PVC dipped finish.
View productProducts — hoarding, guardrails and wire mesh fencing
Everything we make belongs to one of three families: Hoarding & Site Fencing to close a work area, Guardrails & Railings to protect edges and openings, and Wire Mesh Fencing for boundaries, infrastructure and security. Each family below lists its categories with the real specification, and all three are produced in the same workshop in Jiangxia, Wuhan — so a mixed order can be quoted, packed and loaded as one programme. Price: quoted per order — FOB Wuhan / Shanghai, CIF or DDP.
01 · Wire Mesh Fencing
Wire mesh fencing for boundaries, roads, rail and security
Everything here is hot-dip galvanised steel wire or galvanised tube frame, finished hot-dip galvanised, electrostatically sprayed or PVC dipped. Mesh size, wire diameter and post spacing are made to the project specification — send us the drawing or the standard you follow. Temporary mesh fence, double-wire and chain-link lead the family because they carry the highest volumes and travel best in a container.
Chain-Link Fence
Woven diamond-mesh fencing on round posts with line and corner posts, top rail, tension bands and bracing — the widest-volume mesh fence worldwide and the quickest to erect in long runs.
Request a quote

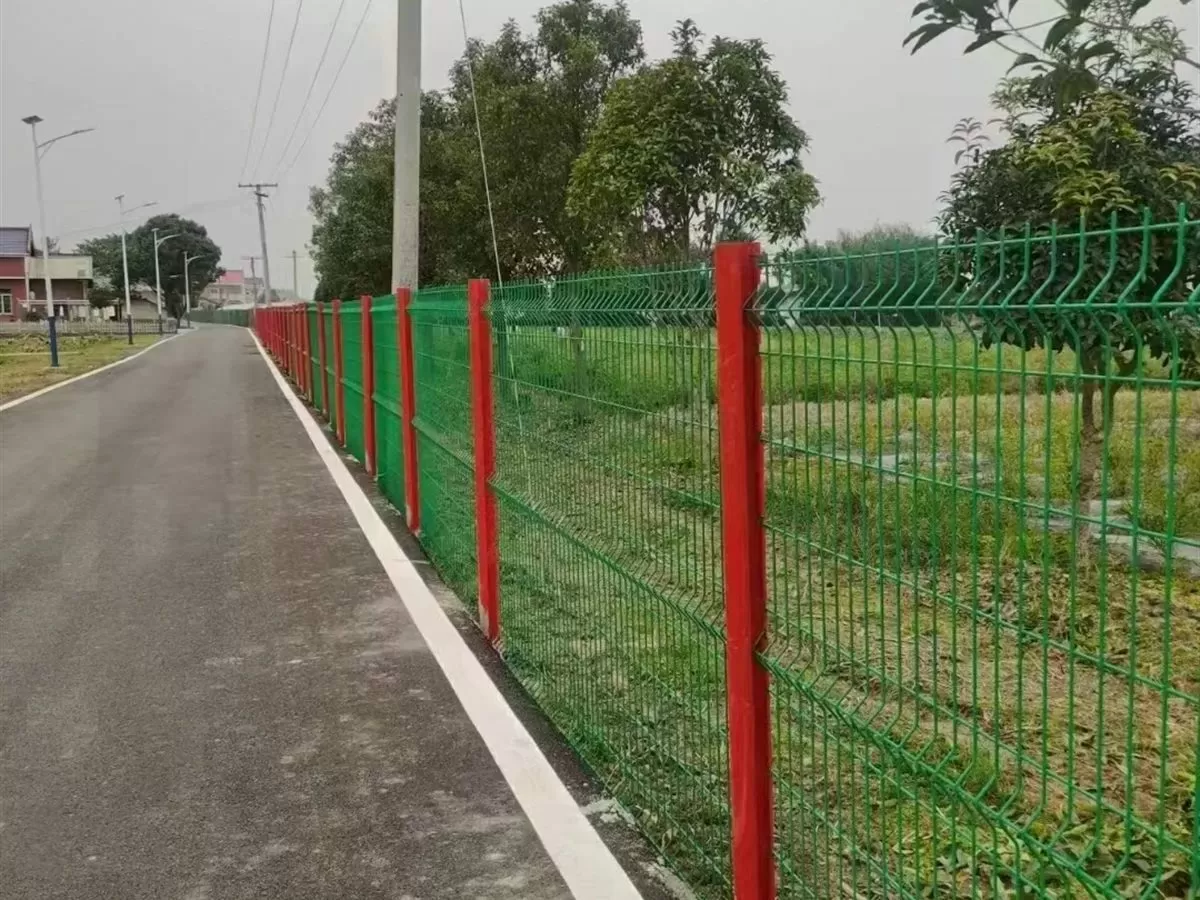

Peach-Post Mesh Fence
Welded mesh panels clipped to peach-shaped steel posts with matching caps and clips — the common residential boundary build in Australia and New Zealand.
Request a quote
Framed Mesh Fence
Welded mesh set into a square-tube frame and bolted to the posts, giving a stiff panel for plants, roads and boundaries where a plain roll of mesh would sag.
Request a quote
Sports Court Fence
Tall mesh fence enclosing courts and pitches, with the panel height, post spacing and gate positions set out on the layout drawing.
Request a quote
Anti-Glare Mesh
Mesh with angled or louvred blades that cut headlight glare between carriageways, mounted on the same posts as the fence line.
Request a quote
Temporary Mesh Fence
Movable welded mesh panel for work areas, events and temporary separation; panels stand on feet or base plates and are lifted and re-positioned by hand.
Temporary Mesh Fence
Anti-Climb Y-Post Fence
Welded mesh panels carried on Y-shaped or peach-shaped posts with an angled head, so the line has no continuous top rail and no flat ledge to take hold of; razor wire or barbed topping can be fixed in the fork. Mesh aperture, wire diameter and post spacing made to the project specification.
View product
Razor Wire
Blade strip closed onto a high-tensile core wire and supplied in coils — the concertina or flat-wrap build, in galvanised or stainless steel, with barbed wire as the alternative where the requirement is lighter. Blade dimensions, coil diameter and fixing brackets are confirmed per order.
View product| Temporary Mesh Fence | Welded mesh panel on a stand or base plate; panels are lifted and re-positioned by hand. Panel size, frame and base made to the project specification. |
|---|---|
| Double-Wire Mesh Fence | Double horizontal wires with a single vertical wire, welded into a rigid panel; round or square posts with clamps and post caps. |
| Chain-Link Fence | Woven diamond mesh on round posts with line and corner posts, top rail, tension bands and bracing; gate posts quoted with the run. |
| Peach-Post Mesh Fence | Welded mesh panel clipped to peach-shaped steel posts with matching caps and clips. |
| Framed Mesh Fence | Welded mesh welded into a square-tube frame, bolted to the posts. |
| Sports Court Fence | Tall mesh enclosure on posts; height, post spacing and gate positions set out on the layout drawing. |
| Anti-Glare Mesh | Mesh with angled or louvred blades, mounted on the same posts as the fence line. |
| Material | Hot-dip galvanised steel wire and galvanised tube frame. |
| Surface | Hot-dip galvanised, electrostatic spray or PVC dipped. |
| Mesh aperture | 50 × 100, 75 × 150, 50 × 200, 60 × 150 and 80 × 160 mm are the most common on our framed mesh panels; other mesh builds are made to the project specification — send us the drawing or the standard you follow. |
| Wire diameter | ø2.5–6.0 mm on our framed mesh panels, most often ø3.0, ø3.2, ø3.5, ø3.8 and ø4.0 mm; other mesh builds are made to the project specification — send us the drawing or the standard you follow. |
| Post section | Framed mesh panel: ø48 mm round tube with wall 1.0 / 1.2 / 1.5 / 2.0 mm (60 mm and 75 mm round tube also available), or 40 × 40, 60 × 60, 40 × 60 and 80 × 80 mm square tube with wall 0.8 / 1.0 / 1.2 / 1.5 / 2.0 mm; other mesh builds are made to the project specification and post spacing is confirmed against the drawing. |
| Panel height | Framed mesh panels are 1700 × 2500, 1800 × 2500, 1800 × 3000, 2000 × 3000 and 1500 × 2500 mm; other mesh builds are made to the project specification — send us the drawing or the standard you follow. |
| Colour | RAL to sample — send the reference or a physical sample and we confirm the coating on the shop drawing. |
| Fixing | Clamps, clips, tension bands, base plates or concrete footings, as the ground conditions and the drawing require. |
| Packing | Mesh panels, posts, clamps and fittings are bundled and palletised for container loading; the exact packing method is confirmed per specification with the loading plan. |
| Price | Price: quoted per order — FOB Wuhan / Shanghai, CIF or DDP |
| MOQ | Confirmed per specification — send the drawing, quantity and destination port and we reply with MOQ, loading plan and lead time within one business day. |
| Loading | Confirmed per specification — send the drawing, quantity and destination port and we reply with MOQ, loading plan and lead time within one business day. |
| Lead time | Confirmed per specification — send the drawing, quantity and destination port and we reply with MOQ, loading plan and lead time within one business day. |
| Documentation | Proforma invoice, commercial invoice, packing list and certificate of origin as required. Buyers who need CE / EN / ASTM documentation: tell us the standard and we will confirm in writing what we can supply. |
02 · Guardrails & Railings
Guardrails for the edge, the opening and the road
Steel, zinc-steel and PVC railings for excavation edges, slab edges, roads, crowds and green areas. The excavation edge guardrail and the zinc-steel perimeter railing carry our published specifications; every other railing in the family is made to the drawing, the height and the run you specify.

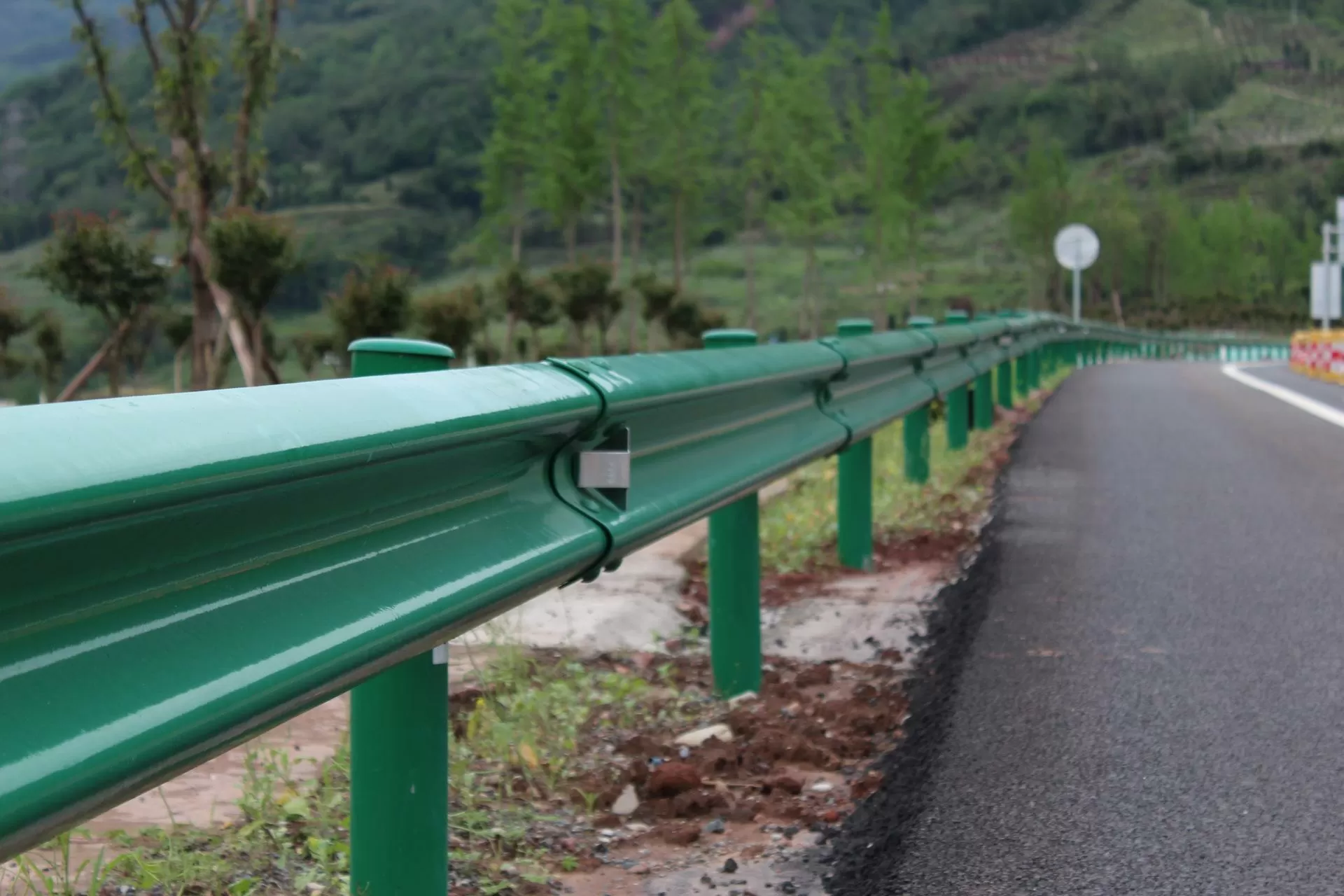

W-Beam Steel Road Guardrail
Corrugated beam panels: 4320 mm long on a 4 m post spacing, twin-wave 310 mm or triple-wave 505 mm wide, 85 mm wave height, 3 mm or 4 mm plate, on Φ114 / Φ140 mm posts with 4.5 mm wall. Standard section per kilometre: 250 panels, 250 posts, 2 end terminals, 250 post caps, 250 spacer blocks, 250 connector bolt sets and 2000 splicing bolt sets.
View product
Excavation Edge Guardrail
Mesh-panel type on a 20 × 30 / 30 × 30 mm frame with 50 × 50 mm mesh, or vertical-tube type on a 30 × 30 mm frame — both on a 50 × 50 mm square-tube post.
View product
Zinc-Steel Perimeter Railing
1.2–2.0 m high × 3 m sections and made to order, 2–4 rail levels, 50 × 50 / 40 × 40 mm posts and rails, 19 × 19 mm vertical bars, hot-dip galvanised and powder coated, assembled without welding.
Request a quote
PVC Railing
PVC profile rails and posts over a galvanised core for roadside and garden boundaries, in the colour you specify and cut to the run on the drawing.
Request a quote
Crowd-Control Barrier
Interlocking barrier sections with removable feet, for queuing, events and pedestrian separation, in the panel size and finish you specify.
Request a quote

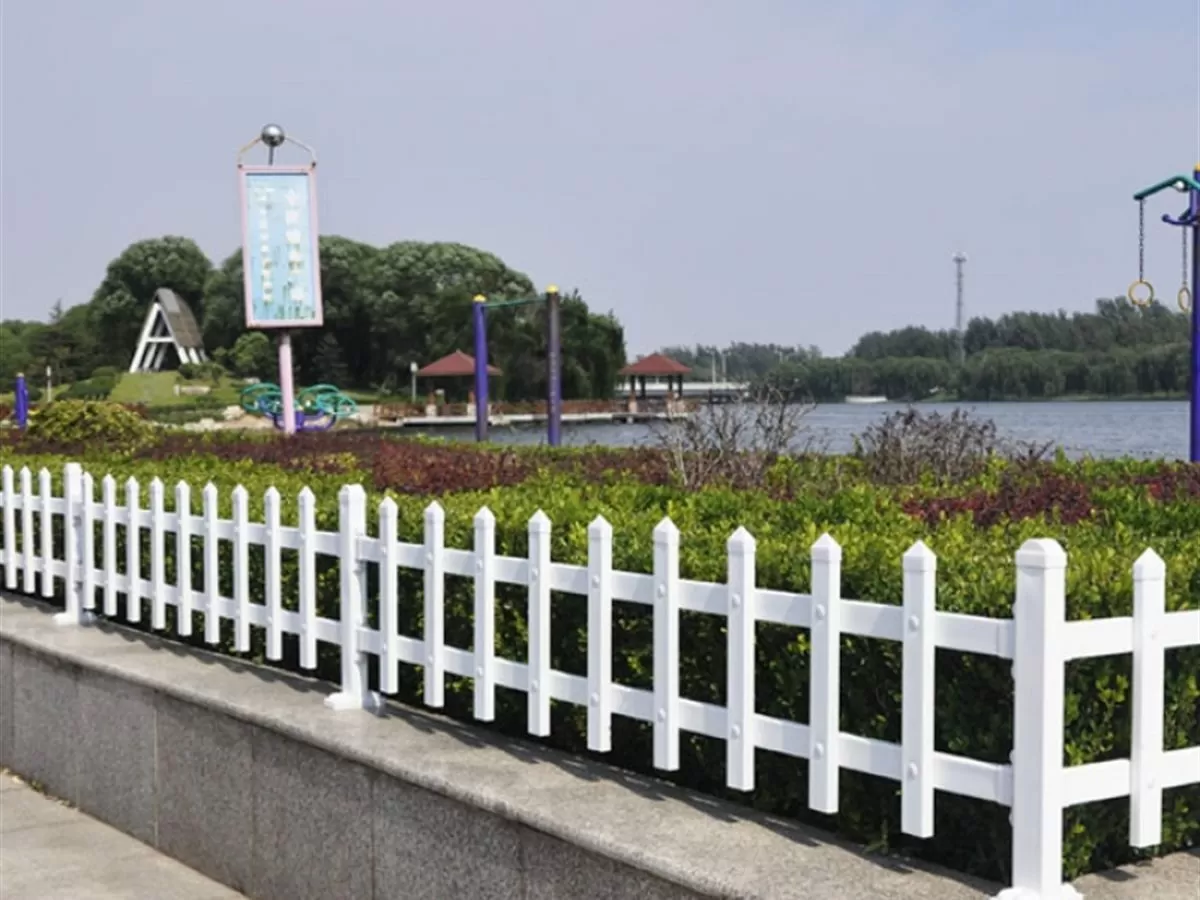

Planter Railing
Low railings around planters and green areas in coated steel or PVC, made to the run, height and colour you specify.
Request a quote| Excavation Edge Guardrail | Mesh-panel type: frame 20 × 30 / 30 × 30 mm square tube, mesh 50 × 50 mm. Vertical-tube type: frame 30 × 30 mm. Post for both: 50 × 50 mm square tube. |
|---|---|
| Zinc-Steel Perimeter Railing | 1.2–2.0 m high × 3 m (made to order); 2–4 rail levels; posts / rails 50 × 50 / 40 × 40 mm; vertical bars 19 × 19 mm; hot-dip galvanised + electrostatic spray; bolt-free assembly. |
| Road Guardrail (W-Beam Steel Road Guardrail) | Panel length 4320 mm, net 4 m after installation; post spacing 4 m. Twin-wave beam 310 mm wide, wave height 85 mm, plate 3 mm or 4 mm, theoretical mass 49.16 kg / 65.44 kg, 12.3 t / 16.388 t per km. Triple-wave beam 505 mm wide, 85 mm wave height, 4 mm plate, 102 kg. Posts Φ114 / Φ140 mm, wall 4.5 mm, length 1.85 / 1.95 / 2.00 / 2.15 m, theoretical mass 12.15 kg/m (Φ114) and 15.04 kg/m (Φ140). Per km: 250 panels, 250 posts, 2 end terminals, 250 post caps, 250 spacer blocks, 250 connector bolt sets, 2000 splicing bolt sets. Cited standard JT/T 281—2007. |
| PVC Railing | Colour white, blue, red, green and others; made from domestic virgin material. Rails 36 × 56 mm; vertical bars 20 × 46 mm; post options 58 × 78 mm (small), 88 × 88 mm (medium) and 121 × 121 mm (large). |
| Crowd-Control Barrier | Interlocking steel sections with removable feet — panel size and finish made to the project specification. |
| Planter Railing | Coated steel or PVC railing — run, height and colour made to the project specification. |
| Surface | Hot-dip galvanised, galvanised and powder coated, electrostatic spray or PVC, confirmed on the shop drawing. |
| Colour | RAL to sample — send the reference or a physical sample and we confirm the coating on the shop drawing. |
| Packing | Posts, panels, rails and fittings are bundled and palletised for container loading; the exact packing method is confirmed per specification with the loading plan. |
| Price | Price: quoted per order — FOB Wuhan / Shanghai, CIF or DDP |
| MOQ | Confirmed per specification — send the drawing, quantity and destination port and we reply with MOQ, loading plan and lead time within one business day. |
| Loading | Confirmed per specification — send the drawing, quantity and destination port and we reply with MOQ, loading plan and lead time within one business day. |
| Lead time | Confirmed per specification — send the drawing, quantity and destination port and we reply with MOQ, loading plan and lead time within one business day. |
03 · Hoarding & Site Fencing
Hoarding that closes the site, from a movable panel to a 5 m high-rise run
Galvanised or coated steel posts, colour-steel, PVC or perforated panels, plus the water-filled barriers that go with them. Water-filled barriers lead the family because they are the items overseas buyers ask for first — they assemble without groundwork and can be taken down and re-used.
Water-Filled Barrier
Water-ballasted plastic units that interconnect with each other for road works, lane closure, traffic management and event separation.
View product
Municipal Hoarding
220 × 300 × 0.9 mm galvanised post, 80 × 80 × 1.0 mm concealed post, a 480 mm white panel over a 400 mm grey panel, 50 × 50 × 0.9 mm brace and flange / expansion-bolt fittings.
Request a quote

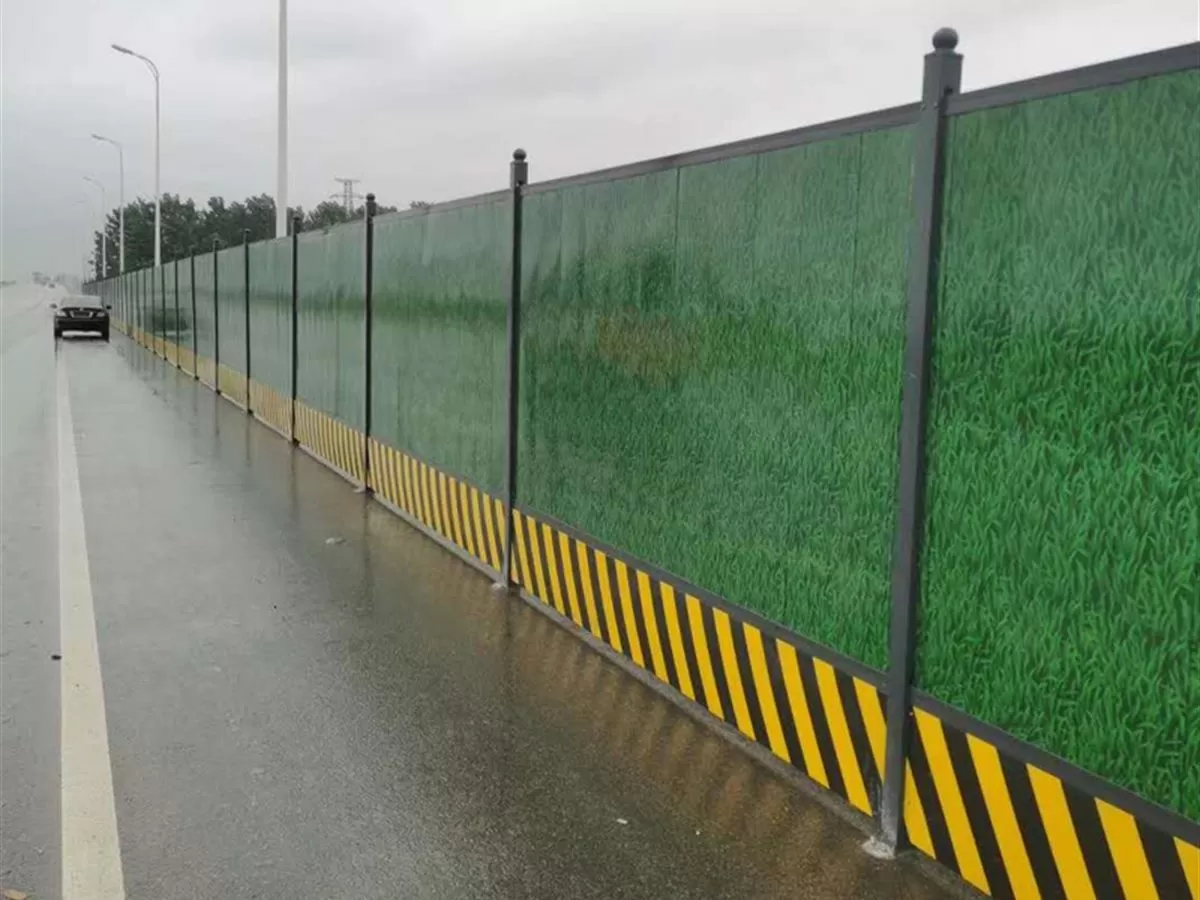

Colour-Steel Hoarding
80 × 80 × 0.8 mm coated square-tube post, 0.6 / 0.25 mm U-channel, 0.3 mm grass-green colour-steel sheet, a 0.4 mm black-yellow PVC warning panel and a 40 square-tube or L40 brace.
Request a quote
PVC Hoarding
120 × 120 mm PVC post shell over an 80 × 80 × 0.8 mm galvanised core, a 20 mm PVC panel in the custom colour you specify, galvanised channel and 40 square-tube.
Request a quote
Perforated Hoarding
1,200 × 2,000 mm galvanised sheet at 0.5–0.8 mm thick with Φ10 mm perforations, a 0.7 mm steel-tube support and an electrostatic spray finish in the colour you choose.
Request a quote
Blue-Sky Printed Hoarding
2.5 × 6 m sections with a half-round profiled post, 80 × 80 × 0.9 mm concealed post, a 480 mm printed colour-steel upper panel over a 480 mm green louvred perforated lower panel and a 60 mm U-cap.
Request a quote| Water-Filled Barrier | Tall water barrier: length 102 cm, height 183 cm (customisable), width 400 mm; net weight 8–9 kg; weight when filled with water 100 kg; weather resistance −40 °C to +60 °C; service life more than two years; units interconnect with each other; colour emerald blue or red, other colours to requirement; blow-moulded in one hollow piece; withstands wind force grade 7–8. Rotomoulded type: imported PE; the manufacturer publishes no dimensions, weight or price for that type. |
|---|---|
| Municipal Hoarding | Post 220 × 300 × 0.9 mm galvanised tube; concealed post 80 × 80 × 1.0 mm; panels 480 mm white + 400 mm grey; brace 50 × 50 × 0.9 mm square tube; flange and expansion-bolt fittings. |
| Colour-Steel Hoarding | Post 80 × 80 × 0.8 mm coated square tube; U-channel 0.6 / 0.25 mm; panel 0.3 mm grass-green colour-steel sheet; warning board 0.4 mm black-yellow PVC; brace 40 square tube / L40. |
| PVC Hoarding | Post shell 120 × 120 mm PVC over an 80 × 80 × 0.8 mm galvanised core; panel 20 mm PVC board in a custom colour; galvanised channel + 40 square tube. |
| Perforated Hoarding | Sheet 1,200 × 2,000 mm galvanised board, 0.5–0.8 mm thick, Φ10 mm perforations; steel-tube support wall 0.7 mm; electrostatic spray finish in multiple colours. |
| Blue-Sky Printed Hoarding | 2.5 × 6 m; half-round profiled post; concealed post 80 × 80 × 0.9 mm; upper panel 480 mm printed colour-steel sheet; lower panel 480 mm green louvred perforated; 60 mm U-cap. |
| Colour and print | RAL to sample — send the reference or a physical sample and we confirm the coating or print on the shop drawing. |
| Packing | Panels, posts, braces and bases are bundled and palletised for container loading; the exact packing method is confirmed per specification with the loading plan. |
| Price | Price: quoted per order — FOB Wuhan / Shanghai, CIF or DDP |
| MOQ | Confirmed per specification — send the drawing, quantity and destination port and we reply with MOQ, loading plan and lead time within one business day. |
| Loading | Confirmed per specification — send the drawing, quantity and destination port and we reply with MOQ, loading plan and lead time within one business day. |
| Lead time | Confirmed per specification — send the drawing, quantity and destination port and we reply with MOQ, loading plan and lead time within one business day. |
Send the drawing or the standard, the quantity and the destination port
Tell us which family and which categories you need, the drawing or the standard you follow, the quantity and the destination port. We reply with the specification, the coating, the packing plan and the shipping terms. Price: quoted per order — FOB Wuhan / Shanghai, CIF or DDP. Confirmed per specification — send the drawing, quantity and destination port and we reply with MOQ, loading plan and lead time within one business day.
