Wire Mesh Fencing
The full mesh family: double-wire, chain-link, peach-post, framed, highway, railway, airport, sports court, school, anti-glare, bridge, temporary mesh fence and noise barrier.
View rangeDouble-wire mesh fence
A welded wire panel fence built on two horizontal wires and a single vertical wire, on round or square posts, in hot-dip galvanised, galvanised-and-powder-coated or PVC dipped finish. Mesh aperture, wire diameter and post spacing are made to the project specification.

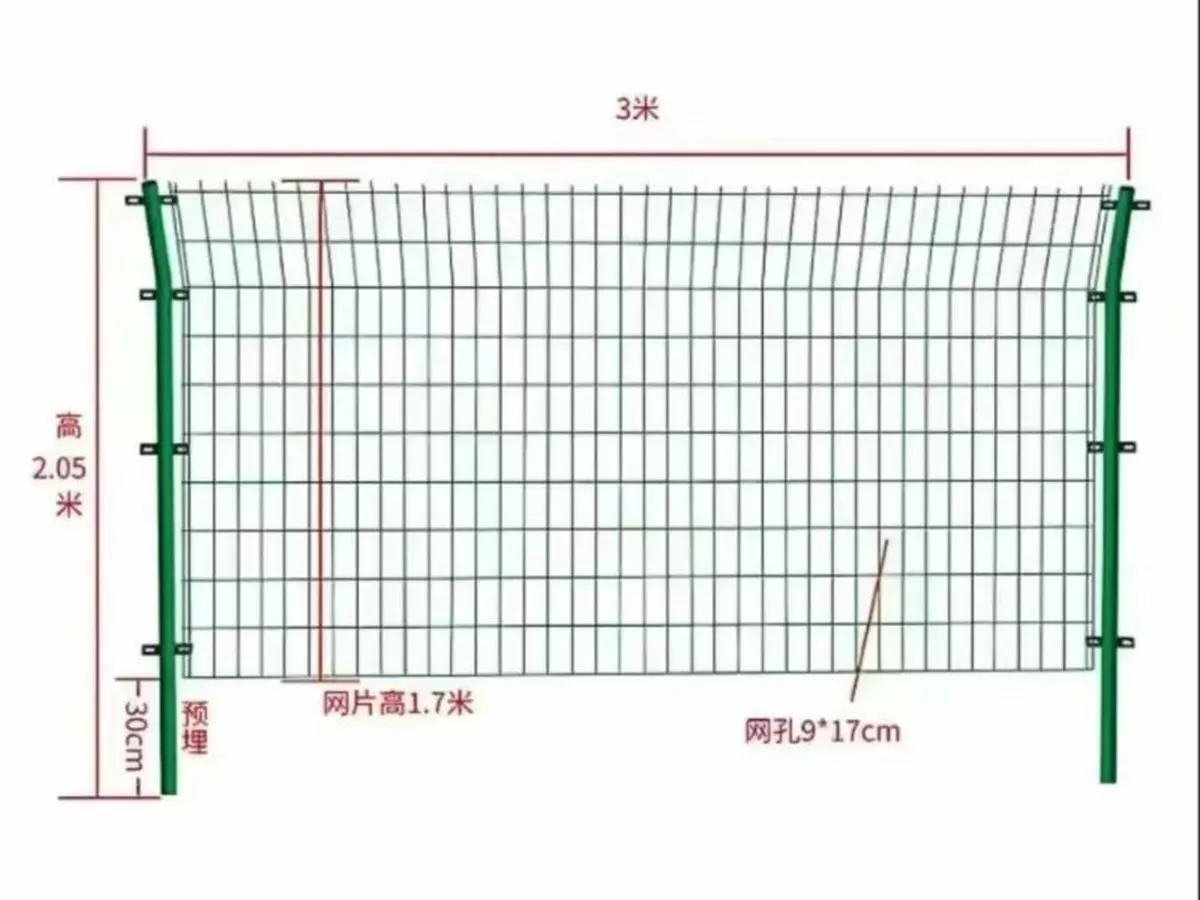

Double-wire mesh fence — welded panel and post system
Double horizontal wire
Single vertical wire
Hot-dip galvanised
Powder coated
PVC dipped option
Round or square posts
Double-wire mesh fence is welded from two horizontal wires and a single vertical wire, which is what gives the panel its straight, tightly stretched face and its strength against being pushed or leaned on. The mesh can be square or rectangular, the posts round or square, and the finish hot-dip galvanised, galvanised and powder coated, or PVC dipped where a heavier, softer-looking coating is wanted. The panel is rigid enough to be erected as a fence and light enough to be handled without heavy plant.
Because this family covers so many site conditions, we do not publish one fixed mesh or wire size for it. Mesh aperture, wire diameter, post section and post spacing are made to the project specification — send us the drawing or the standard you follow and we will confirm the panel and post build in writing.
- Construction: double horizontal wires with a single vertical wire, welded into a rigid panel.
- Mesh shape: square or rectangular, made to the project specification.
- Posts: round or square section, fixed to the panel with clamps and supplied with the matching caps.
- Surface: hot-dip galvanised, galvanised and powder coated, or PVC dipped for a thicker coating.
- Applications: residential perimeters, industrial plants, roads, railways, airports and sports courts.
- Mesh size, wire diameter and post spacing are made to the project specification — send us the drawing or the standard you follow.
- Gates, corner posts and bracing are quoted with the fence run; tell us the opening widths and we confirm the gate posts on the drawing.
Full specification
Double-wire mesh fence — specification summary
This family is specified by the project, so the table below states what is fixed and what is quoted against your drawing. Mesh, wire, post section and panel height are confirmed on an approved shop drawing before production.
| Product / model reference | Double-wire mesh fence — welded panel and post system. Quotation against your drawing or the standard you follow; no catalogue model number is issued until the drawing is agreed. |
|---|---|
| Material and finish | Hot-dip galvanised or galvanised-and-powder-coated steel wire; PVC dipped option. Post finish to match, confirmed on the shop drawing. |
| Panel / post construction | Double horizontal wires with a single vertical wire, welded into a rigid panel; square or rectangular mesh; round or square posts with clamps and post caps. |
| Mesh aperture | Made to the project specification — send us the drawing or the standard you follow. |
| Wire diameter | Made to the project specification — send us the drawing or the standard you follow. |
| Post section | Round / square, made to specification; post spacing confirmed against the drawing. |
| Surface | Hot-dip galvanised, powder coated or PVC dipped. |
| Panel height | 1.0–3.0 m (project specific). |
| Colour | RAL to sample — send the reference or a physical sample and we confirm the coating on the shop drawing. |
| Packing | Panels, posts and clamps are bundled and palletised for container loading; the exact packing method is confirmed per specification with the loading plan. |
| Price | Price: quoted per order — FOB Wuhan / Shanghai, CIF or DDP |
| MOQ | Confirmed per specification — send the drawing, quantity and destination port and we reply with MOQ, loading plan and lead time within one business day. |
| Loading | Confirmed per specification — send the drawing, quantity and destination port and we reply with MOQ, loading plan and lead time within one business day. |
| Lead time | Confirmed per specification — send the drawing, quantity and destination port and we reply with MOQ, loading plan and lead time within one business day. |
| Documentation | Proforma invoice, commercial invoice, packing list and certificate of origin as required. Buyers who need CE / EN / ASTM documentation: tell us the standard and we will confirm in writing what we can supply. |
Packing & shipping
How double-wire mesh fence reaches your site
Panels and posts shipped as one programme — bundled, labelled and loaded to the loading plan agreed for the order.
Export packing
Mesh panels are stacked face to face with edge protection and steel-banded into bundles; posts, clamps and post caps are bundled and bagged separately. Every bundle carries the panel height, the post section and the drawing reference, and the packing method is confirmed per specification on the packing list.
Loading plan
Confirmed per specification — send the drawing, quantity and destination port and we reply with MOQ, loading plan and lead time within one business day. Fence loads are usually limited by bundle weight and stacking height rather than by volume; give us the container size and the maximum bundle weight you can unload and we plan to it.
Documents & terms
We issue the proforma invoice, commercial invoice, packing list and certificate of origin. Documentation against a named standard is confirmed in writing per order. Payment terms and warranty are agreed per order and stated on the proforma invoice.
Related products
Usually quoted with double-wire mesh fence
Water-Filled Barrier
Water-ballasted plastic units that interconnect for road works and traffic diversion.
View product
Excavation Edge Guardrail
Mesh-panel or vertical-tube type on a common 50 × 50 mm square-tube post, for excavation edges, basement pits and slab edges.
View productSend the drawing or the standard you follow
Tell us the perimeter length, the panel height, the mesh and wire you need, the post section, the colour reference and the destination port. We reply within one business day with the panel and post build, the quantity and the packing plan.
