View rangeFramed mesh fence
A welded mesh panel welded into a frame of square tube, round tube, rectangular tube or angle steel. The frame is what holds the mesh panel flat and gives the panel its rigidity, and the frame section is chosen with the post section for the run.

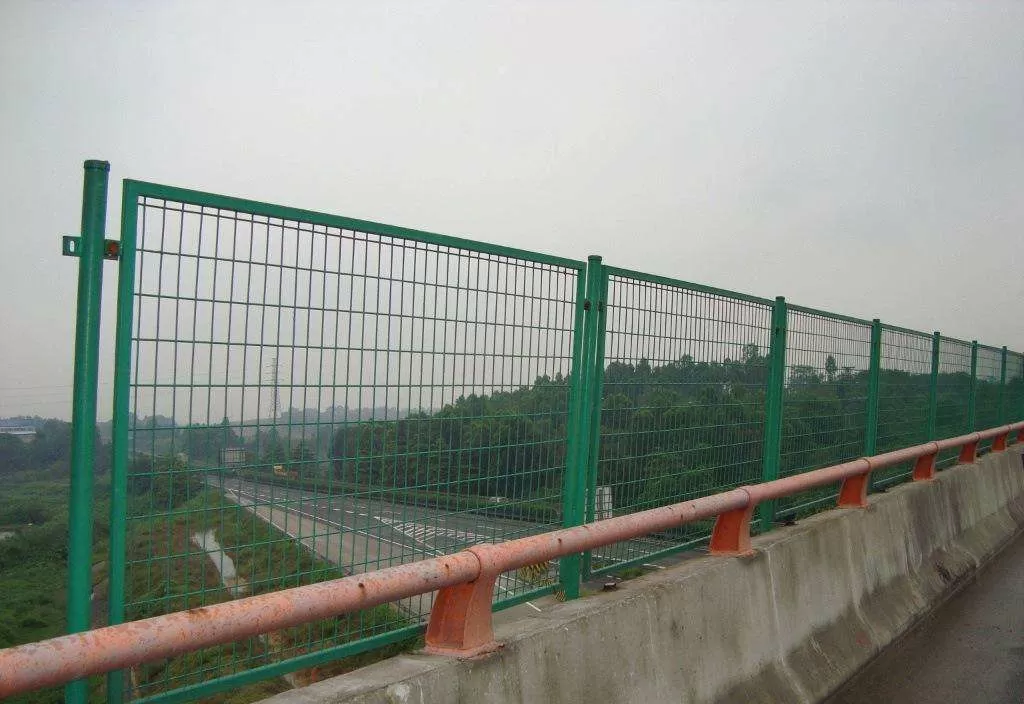

Framed mesh fence — welded panel, frame and post system
Welded mesh panel
Square, round, rectangular or angle frame
Frame 20 × 30 / 20 × 40 mm
Wall 0.8–1.5 mm frame
ø48 mm round posts
40 × 40 – 80 × 80 mm square posts
PVC dipped
Powder coated

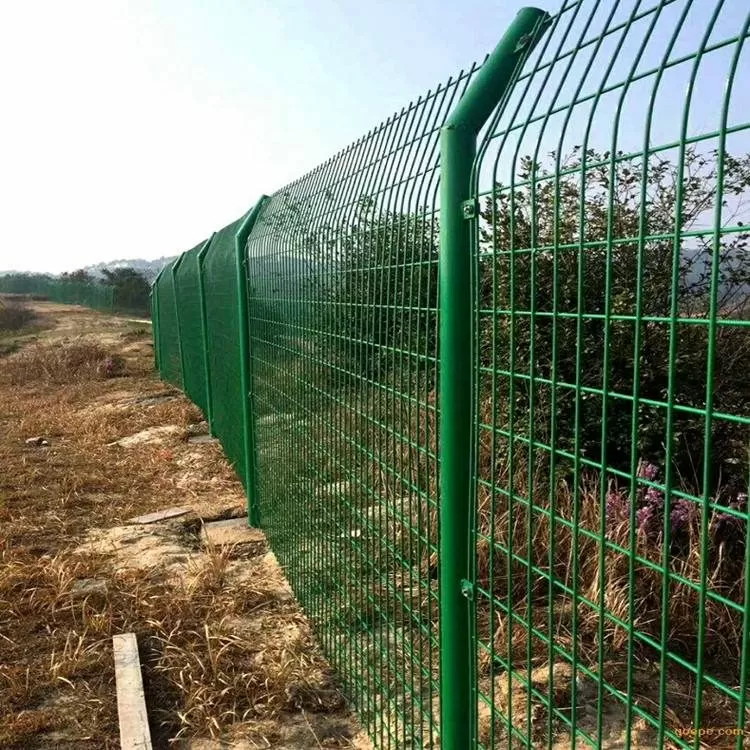

Framed mesh fence is a welded mesh panel welded into a frame. The panel is welded from low-carbon steel wire to the aperture the customer specifies, and the frame is made from square tube, round tube, rectangular tube or angle steel. Welding the mesh into the frame is what holds the panel flat and gives it the rigidity of a framed unit rather than a loose sheet.

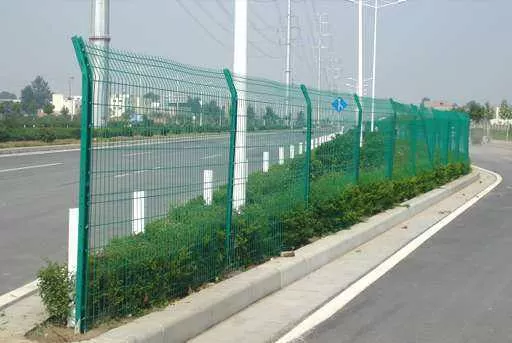

The frame is made from 20 × 30 mm or 20 × 40 mm rectangular welded tube with a wall of 0.8, 1.0, 1.2 or 1.5 mm. The posts are ø48 mm round tube with a wall of 1.0, 1.2, 1.5 or 2.0 mm, or square tube in 40 × 40, 60 × 60, 40 × 60 or 80 × 80 mm with a wall from 0.8 to 2.0 mm. Frame and post section are chosen together, because the panel is fixed to the post along the frame.
The surface is electro-galvanised or hot-dip galvanised and then PVC dipped, or galvanised plus powder coating. Colours are white, green, dark green, grass green, black, blue and yellow. The mesh aperture and the panel size follow the drawing, so the panel is quoted to the run rather than to a catalogue size.
- Construction: mesh panel welded from low-carbon steel wire to the aperture the customer specifies, then welded into a frame.
- Frame material: square tube, round tube, rectangular tube or angle steel.
- Frame section: 20 × 30 mm or 20 × 40 mm rectangular welded tube, wall 0.8 / 1.0 / 1.2 / 1.5 mm.
- Round posts: ø48 mm tube, wall 1.0 / 1.2 / 1.5 / 2.0 mm.
- Square posts: 40 × 40, 60 × 60, 40 × 60 or 80 × 80 mm, wall 0.8–2.0 mm.
- Surface: electro-galvanised or hot-dip galvanised then PVC dipped, or galvanised plus powder coating.
- Colours: white, green, dark green, grass green, black, blue, yellow.
- Mesh aperture and panel size: made to the project specification — send us the drawing or the standard you follow.
Before you order
What you need to decide
Five choices fix the panel and the post, and they all have to be settled before we can confirm the build in writing.
- Mesh aperture and wire diameter: the panel is welded to the aperture the customer specifies, so send the drawing or the standard you follow.
- Frame material and section: square tube, round tube, rectangular tube or angle steel, and 20 × 30 or 20 × 40 mm rectangular welded tube at 0.8, 1.0, 1.2 or 1.5 mm wall.
- Post section: ø48 mm round tube at 1.0–2.0 mm wall, or square tube in 40 × 40, 60 × 60, 40 × 60 or 80 × 80 mm at 0.8–2.0 mm wall.
- Surface and colour: electro-galvanised or hot-dip galvanised then PVC dipped, or galvanised plus powder coating, in white, green, dark green, grass green, black, blue or yellow.
- Panel size, post spacing and the run: confirmed on the drawing, including corners, ends and gate openings.
Full specification
Framed mesh fence — specification summary
The frame sections, wall thicknesses, post sections and finishes below are the manufacturer's published data for this product. Mesh aperture, panel size and post build are confirmed on an approved shop drawing before production.
| Product / model reference | Framed mesh fence — welded mesh panel welded into a frame, with posts. Quotation against your drawing or the standard you follow; no catalogue model number is issued until the drawing is agreed. |
|---|---|
| Type | Welded mesh panel welded into a frame of square tube, round tube, rectangular tube or angle steel. |
| Mesh | Welded from low-carbon steel wire to the customer's specified aperture. |
| Mesh aperture | Made to the project specification — send us the drawing or the standard you follow. |
| Frame section | 20 × 30 mm or 20 × 40 mm rectangular welded tube, wall 0.8 / 1.0 / 1.2 / 1.5 mm. |
| Round posts | ø48 mm round tube, wall 1.0 / 1.2 / 1.5 / 2.0 mm. |
| Square posts | 40 × 40 mm, 60 × 60 mm, 40 × 60 mm and 80 × 80 mm, wall 0.8–2.0 mm. |
| Panel size | Made to the project specification — send us the drawing or the standard you follow. |
| Surface treatment | Electro-galvanised or hot-dip galvanised and then PVC dipped, or galvanised plus powder coating. |
| Colours | White, green, dark green, grass green, black, blue, yellow. |
| Packing | Panels, posts and fittings are bundled and palletised for container loading; the exact packing method is confirmed per specification with the loading plan. |
| Price | Price: quoted per order — FOB Wuhan / Shanghai, CIF or DDP |
| MOQ | Confirmed per specification — send the drawing, quantity and destination port and we reply with MOQ, loading plan and lead time within one business day. |
| Loading | Confirmed per specification — send the drawing, quantity and destination port and we reply with MOQ, loading plan and lead time within one business day. |
| Lead time | Confirmed per specification — send the drawing, quantity and destination port and we reply with MOQ, loading plan and lead time within one business day. |
| Documentation | Proforma invoice, commercial invoice, packing list and certificate of origin as required. Buyers who need CE / EN / ASTM documentation: tell us the standard and we will confirm in writing what we can supply. |
Packing & shipping
How framed mesh fence reaches your site
Framed panels, posts and fittings shipped as one programme — bundled, labelled and loaded to the loading plan agreed for the order.
Export packing
Framed panels are stacked face to face with edge protection and steel-banded into bundles; posts and fittings are bundled separately. Every bundle carries the panel size, the frame and post section and the drawing reference, and the packing method is confirmed per specification on the packing list.
Loading plan
Confirmed per specification — send the drawing, quantity and destination port and we reply with MOQ, loading plan and lead time within one business day. Framed panels load by bundle weight and stacking height as much as by volume; give us the container size and the maximum bundle weight you can unload and we plan to it.
Documents & terms
We issue the proforma invoice, commercial invoice, packing list and certificate of origin. Documentation against a named standard is confirmed in writing per order. Payment terms and warranty are agreed per order and stated on the proforma invoice.
