View rangeChain-link fence
A woven diamond mesh for sports grounds, parks, roads, farms and general perimeter enclosure. The mesh is made by pre-bending and threading the wire, so the panel is flexible and follows the ground rather than needing a dead-level footing.

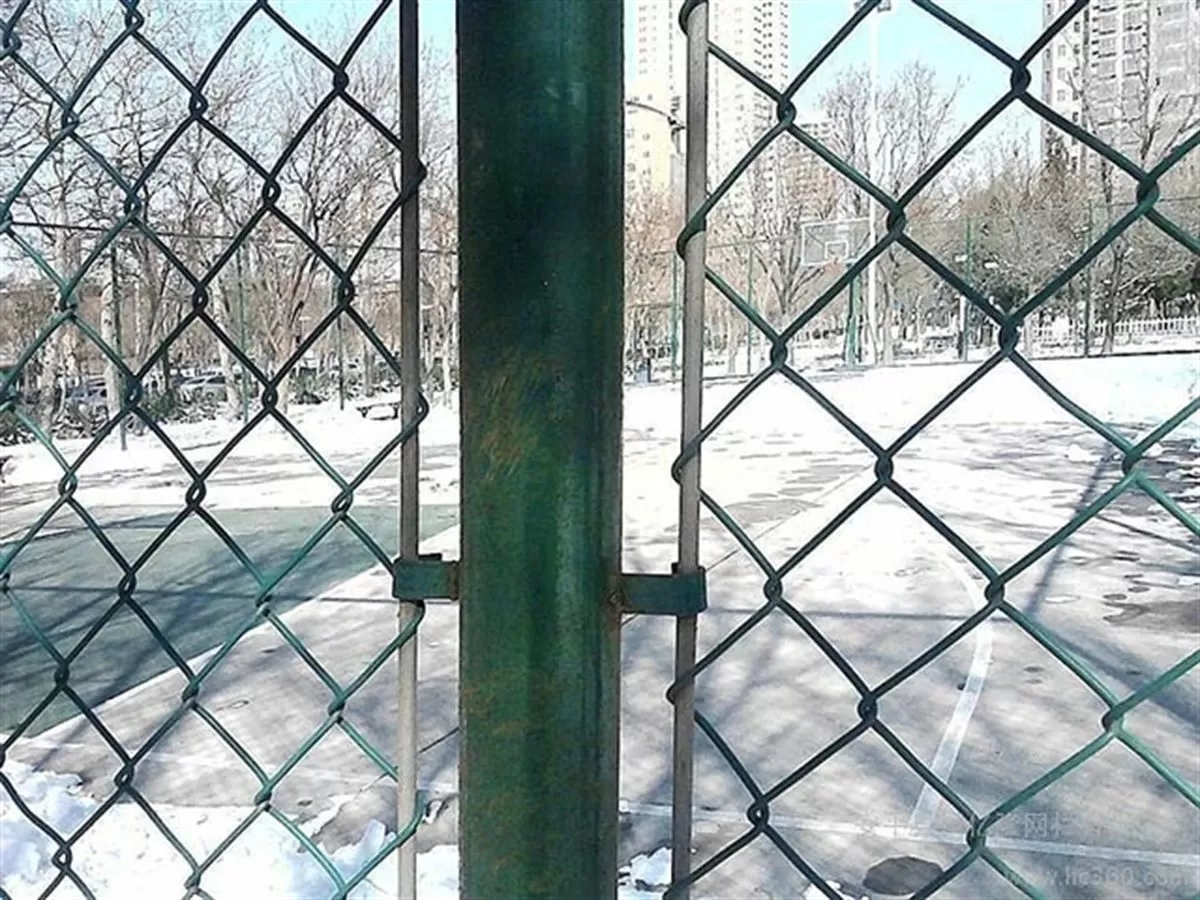

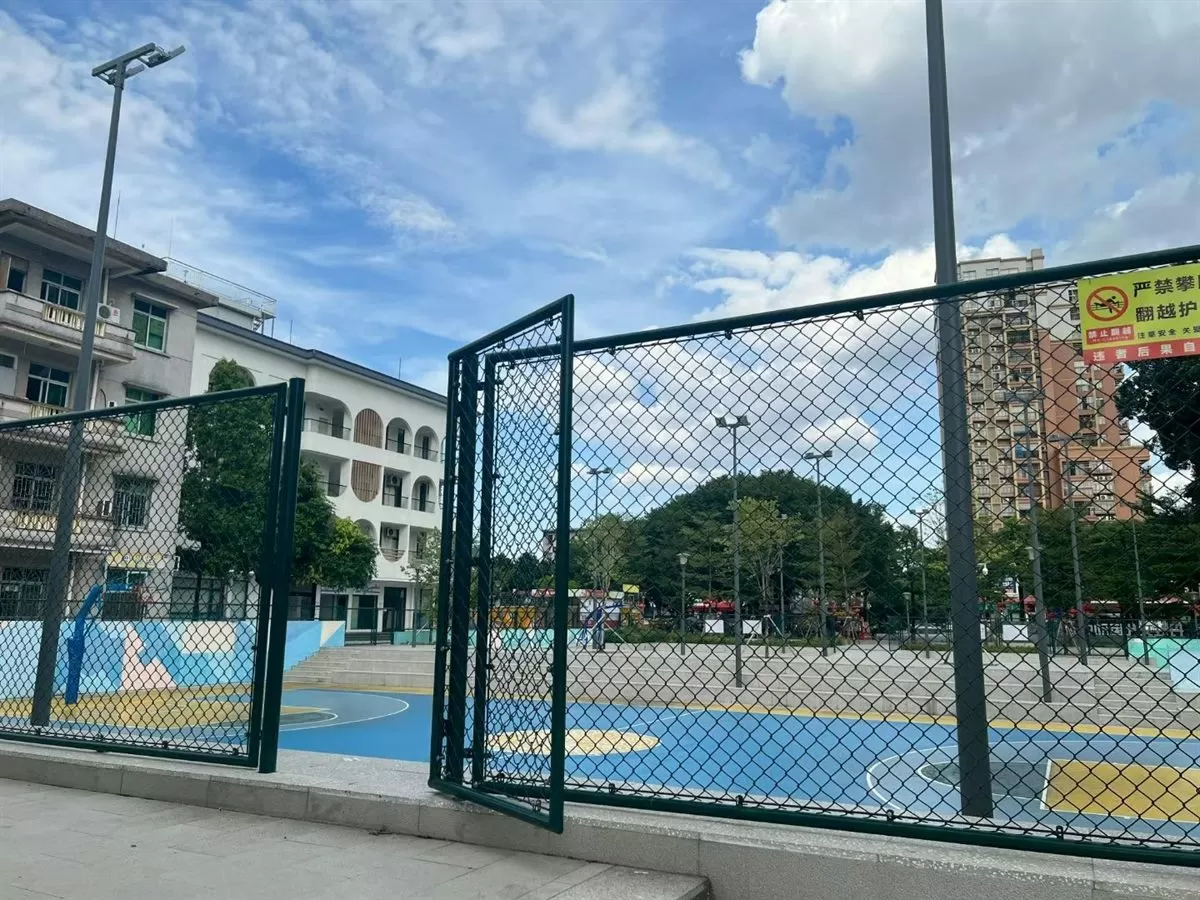

Chain-link fence — woven diamond mesh and post system
Woven diamond mesh
Wire 1.5–4 mm
Mesh 50 × 50 / 60 × 60 / 70 × 70 mm
Panels 1 × 2 – 2 × 3 m
Square or round posts
PVC coated
Hot-dip galvanised
Green and blue
Chain-link fence is a woven mesh, not a welded one: the wire is pre-bent and then threaded through the strand above and below it, so the wires cross in a diamond pattern instead of being welded at every intersection. That woven construction is what gives the panel its flexibility — it can be pulled around corners and it follows ground level along the run. The wire diameter ranges from 1.5 mm to 4 mm, and the mesh aperture is commonly 50 × 50 mm, 60 × 60 mm or 70 × 70 mm, with other apertures available.
Panels are supplied in sizes such as 1 m × 2 m, 1.5 m × 2 m, 2 m × 2.5 m and 2 m × 3 m, and other sizes can be made. The posts are square or round section, and the surface is either PVC coated or hot-dip galvanised; the colour is mainly green and blue. Chain-link is used for sports grounds, parks, roads, farms and general perimeter enclosure, where a light, open mesh line is wanted rather than a rigid panel.
- Construction: woven mesh — the wire is pre-bent and threaded, so the strands cross in a diamond pattern instead of being welded.
- Wire diameter: 1.5–4 mm.
- Mesh aperture: 50 × 50 mm, 60 × 60 mm, 70 × 70 mm and others.
- Panel sizes: 1 m × 2 m, 1.5 m × 2 m, 2 m × 2.5 m, 2 m × 3 m and others.
- Posts: square or round section.
- Surface: PVC coated or hot-dip galvanised.
- Colour: mainly green and blue.
- Applications: sports grounds, parks, roads, farms and general perimeter enclosure.
Before you order
What you need to decide
Five choices fix the panel and the post, and they all have to be settled before we can confirm the build in writing.
- Wire diameter and mesh aperture: 1.5–4 mm wire with 50 × 50, 60 × 60 or 70 × 70 mm mesh is the common range; tell us the aperture you want if it sits outside those.
- Panel size and run length: 1 × 2, 1.5 × 2, 2 × 2.5 and 2 × 3 m panels are the published sizes, and the run length decides how many panels and posts the order needs.
- Post type: square or round section, with the caps and fittings that match the section you choose.
- Surface and colour: PVC coated or hot-dip galvanised, and mainly green or blue.
- Site conditions: chain-link is a woven mesh and follows ground level, so tell us the slope along the run, the corners to be turned and the gate openings.
Full specification
Chain-link fence — specification summary
The wire diameters, mesh apertures, panel sizes, post types and finishes below are the manufacturer's published data for this product. Panel and post build are confirmed on an approved shop drawing before production.
| Product / model reference | Chain-link fence — woven diamond mesh panel and post system. Quotation against your drawing or the standard you follow; no catalogue model number is issued until the drawing is agreed. |
|---|---|
| Type | Woven mesh. The wire is pre-bent and threaded so the strands cross in a diamond pattern; the panel is not welded at the intersections. |
| Wire diameter | 1.5–4 mm. |
| Mesh aperture | 50 × 50 mm, 60 × 60 mm, 70 × 70 mm and others. |
| Panel sizes | 1 m × 2 m, 1.5 m × 2 m, 2 m × 2.5 m, 2 m × 3 m and others. |
| Posts | Square or round section. |
| Surface treatment | PVC coated or hot-dip galvanised. |
| Colour | Mainly green and blue. |
| Post spacing, gates and corners | Confirmed against the drawing or the buyer's standard — send us the run length, the slope and the opening widths and we confirm the post layout on the drawing. |
| Typical applications | Sports grounds, parks, roads, farms and general perimeter enclosure. |
| Packing | Panels and posts are bundled and palletised for container loading; the exact packing method is confirmed per specification with the loading plan. |
| Price | Price: quoted per order — FOB Wuhan / Shanghai, CIF or DDP |
| MOQ | Confirmed per specification — send the drawing, quantity and destination port and we reply with MOQ, loading plan and lead time within one business day. |
| Loading | Confirmed per specification — send the drawing, quantity and destination port and we reply with MOQ, loading plan and lead time within one business day. |
| Lead time | Confirmed per specification — send the drawing, quantity and destination port and we reply with MOQ, loading plan and lead time within one business day. |
| Documentation | Proforma invoice, commercial invoice, packing list and certificate of origin as required. Buyers who need CE / EN / ASTM documentation: tell us the standard and we will confirm in writing what we can supply. |
Packing & shipping
How chain-link fence reaches your site
Woven mesh rolls or panels, posts and fittings shipped as one programme — bundled, labelled and loaded to the loading plan agreed for the order.
Export packing
Woven mesh is compressed and banded, and panels and posts are bundled separately with the post section and the drawing reference marked on each bundle. The packing method is confirmed per specification on the packing list.
Loading plan
Confirmed per specification — send the drawing, quantity and destination port and we reply with MOQ, loading plan and lead time within one business day. Woven mesh compresses well, so give us the container size and the panel size and we plan the load to it.
Documents & terms
We issue the proforma invoice, commercial invoice, packing list and certificate of origin. Documentation against a named standard is confirmed in writing per order. Payment terms and warranty are agreed per order and stated on the proforma invoice.
